F80BL09-2424-J2
F80BL09-2424-J2

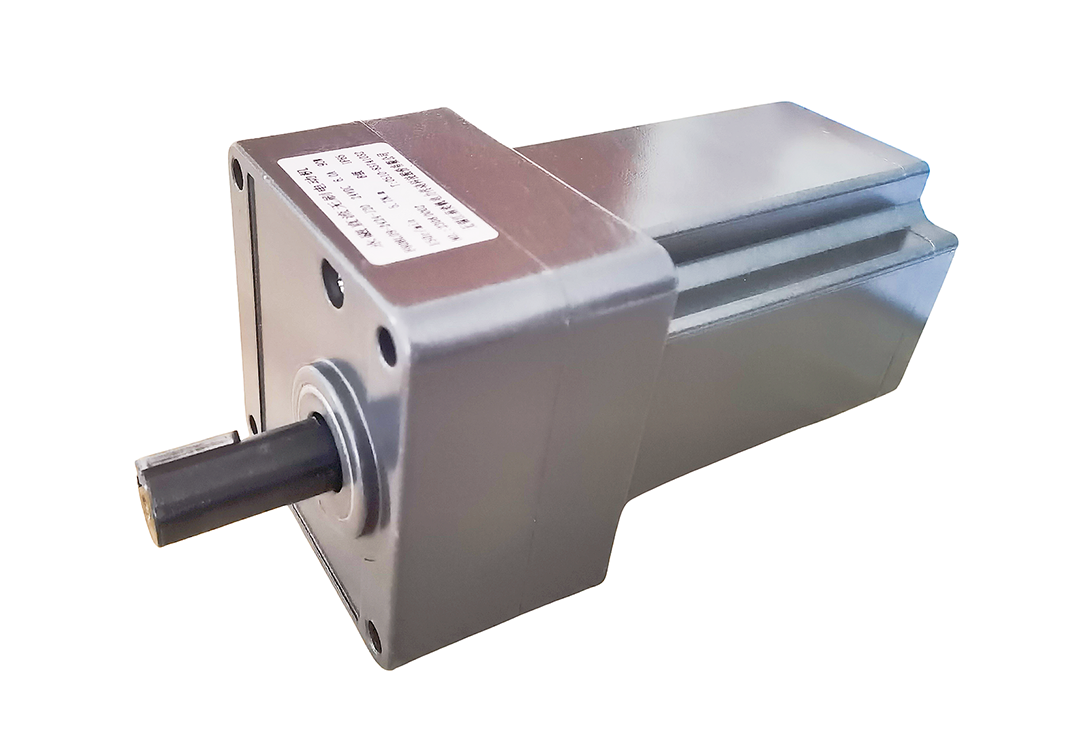

BLDC Gear Motor
Model Number: F80BL09-2424-J2
Brand Name: Yifan Motor
Min. Order: 1 Piece
FOB Port: Shanghai
Lead Time: 30 - 45 days
Country of Origin: China (mainland)

Online Message
Product Details

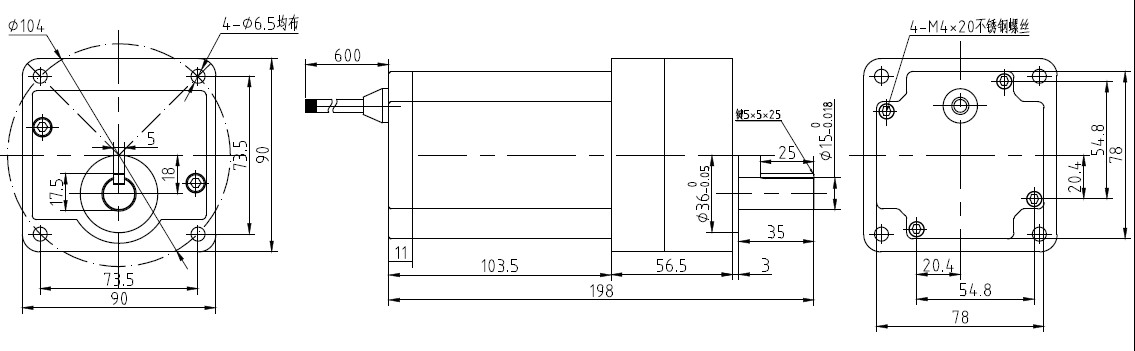

Mechanical dimensions
Performance curve

Application

Solar cleaning robot / Solar panel cleaning robot / Solar module cleaning robot


Features

High efficiency: Brushless motors are designed to provide higher power density and efficiency, suitable for applications requiring long cycle operation.



Longer Life: Since there are no carbon brushes, there is less wear and tear, which means brushless motors typically have a longer life than brushed motors.



Low Maintenance: The lack of carbon brushes reduces maintenance requirements as worn parts do not need to be replaced regularly.



High torque: The reduction mechanism can increase the torque output and meet the demand for high torque while maintaining a relatively small size.



Precise control: Brushless motors are often paired with electronic controllers, allowing for more precise speed and position control, which is critical for cleaning jobs.



Silent Operation: Brushless motors emit relatively low noise levels, which is especially important in residential areas or environments where low-noise operation is required.



Environmental Adaptability: Designed to withstand harsh external environments, such as dustproof, waterproof rating, which is an important feature especially for cleaning robots used in outdoor applications.



Ease of integration: Typically the shapes and sizes of these motors are standardized, making them easy to integrate into different brands and types of solar panel cleaning robots.



Adjustable Speed: Brushless geared motors can be easily adjusted for speed via a frequency converter or electronic speed controller.



Energy feedback: In some designs, when the robot goes downhill or slows down, the motor can be used as a generator, feeding part of the energy back to the battery.



Excellent heat dissipation: Good heat dissipation design ensures that the motor can maintain stable performance even under continuous operating conditions.



Compatibility: Brushless geared motors can be designed to be compatible with a variety of power options, including direct power from solar panels or use with batteries.


Specification Parameters

Motor ModelRated Voltage
  (VDC)
Rated Current
  (A)
Rated Torque
  (Nm)
Rated Speed
   (r/min)
Rated Power
   (W)
System of Work
  (min)
IP Rating
F80BL09-2424-J2246.05.715090S265
